Threaded Products
Integral
Column tooth | ||||||

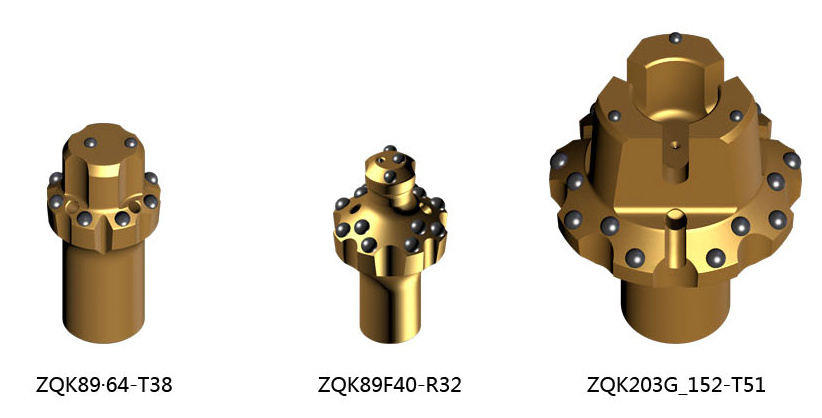

LHS Product Model | Diameter mm | Thread | Teeth quantity and specification | Number and specification of face teeth | Tooth inclination | Guide diameter mm |
ZQK89F/64-T38 | 89 | T38F | 8 * φ12mm | 2 * φ10mm | 35° | 64 |
ZQK89F/40-R32 | 89 | R32F | 8 * φ12mm | 4 * φ 12mm 3*10mm | 35° | 40 |
ZQK203G/152-T51 | 203 | T51F | 9 * φ16mm | 6 * φ 16mm 3*10mm | 35° | 152 |
