DTH impactor



The down-the-hole impactor is a device that uses compressed air as power to impact the drill bit to break the rock through the reciprocating motion of the piston in the impactor. DTH impactor belongs to the working device of down-the-hole drill. According to the working pressure of the impactor, it can be divided into low wind pressure impactor (working pressure is 0.5~0.7Mpa) and medium wind pressure (0.7~1.2Mpa) and high wind pressure impactor (above 1.2Mpa). According to the air distribution mode and structural characteristics of the impactor, it can be divided into two types: valve and valve-less; according to the formation of the central through hole of the down-the-hole impactor, it is divided into ordinary down-the-hole impactor and reverse circulation down-the-hole impactor. It is widely used in large-scale open-pit mines, underground ore mining, anchoring engineering, quarrying and rock drilling, water well geothermal mining, construction engineering rock drilling and large-scale engineering construction.

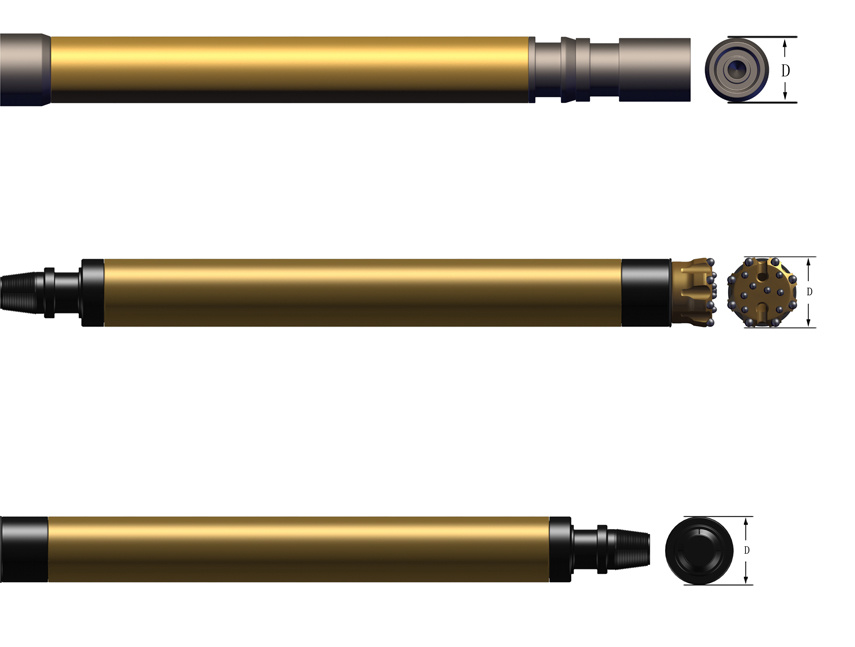

High wind pressure down hole impactor (10-24 Bar)
Impactor size4 ″ 5 ″ 6 ″
Tail shank series DHD340A DHD350R DHD350Q DHD360
Thread sizeAPI 2 3/8" API REG 3 1/2" API REG.
Working wind pressure 10-24Bar
Hole diameterφ105-φ 203mm



Medium and low wind pressure down hole impactor (5-15 Bar)
Impactor Specifications CIR90
Thread sizeF48 × 10PIN API2 3/8 ″ REG BOX
Working wind pressure 5-10Bar
Hole diameterφ90-φ 130mm
