Column tooth bit

Taper column tooth drill bit is also called taper button tooth drill bit. The drill bit is a kind of rock drilling tool, which is used in combination with the taper of the drill bit body and the taper of the drill rod. The products are divided into hot insert process taper drill bit and cold press process column tooth drill bit according to the solid tooth process. Products used in mining, tunneling, anchoring engineering, quarrying and other industries.

  Production process of thread connection drill bit: steel incoming inspection-brazing body production (machining, warm extrusion)-trouser body heat treatment-drilling tooth hole-inlaid alloy tooth-anti-corrosion treatment-product inspection-packaging and warehousing

Common specifications and models of threaded connection drill bit:

Drill bit taper: 4.8 degrees, 6 degrees, 7 degrees, 11 degrees 12 degrees

Drill tail hole diameter: 22mm,23mm

Drill diameter: 20mm,24mm,26mm,28mm,30mm,32mm,34mm,36mm,38mm,40mm,41mm,42mm,50mm,60mm,70mm.

Alloy teeth: 4 teeth, 5 teeth, 6 teeth, 7 teeth, 8 teeth.



taper button bit

Taper

 4° 6° 7° 11° 12°

Diameter

 28-48mm

Tail hole diameter

 15mm 19mm 20mm 22mm 23mm 24mm 25mm

Number of teeth

4 teeth 5 teeth 6 teeth 7 teeth 8 teeth

water hole

 1-4

Trousers

Ordinary Lengthened Ordinary Material High Strength Material

tooth profile

Ball teeth, parabolic teeth

Process

Cold pressing, hot setting











taper column tooth

LHS Product Model

Diameter mm

Tail hole size

Full length (without alloy) mm

Teeth quantity and specification

Number and specification of face teeth

Tooth inclination (degree)

Number and diameter of side water holes

Number and diameter of top water hole

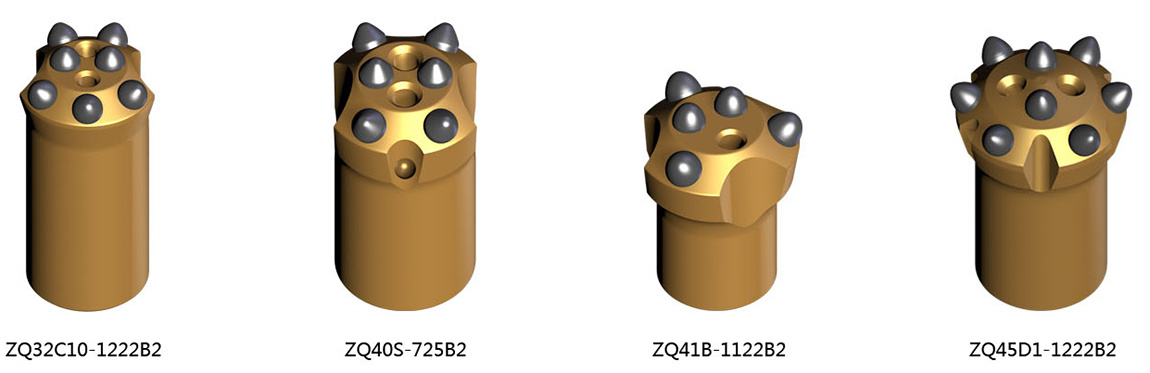

ZQ32C10-1222B2

32

12 ° * φ22mm

65

5 * φ7mm

2 * φ7mm

35°

1 * φ14mm

2 * φ4mm

ZQ40S-725B2

40

7 ° * φ25mm

65

4 * φ9mm

2 * φ8mm

35°

1 * φ5mm

2 * φ5mm

ZQ41B-1122B2

41

11 ° * φ22mm

50

3 * φ9mm

2 * φ8mm

35°

1 * φ5mm

1 * φ6mm

ZQ45D1-1222B2

45

11 ° * φ22mm

68

6 * φ8mm

2 * φ8mm

40°

2 * φ5mm

2 * φ5mm
