Threaded Products
LHS HYD

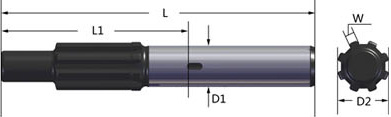

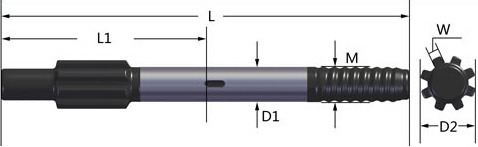

| Thread (Not M) | Length （L）mm | Straight water distribution sleeve Diameter (D1)mm | Water hole position Set L1mm | Spline diameter (D2)mm | Spline width (W)mm | |
| LHS Product Model QW5-351R32F | ||||||
 | R32F | 351 | φ45 | 213 | 54 | 9*8 |
| Supporting models | ||||||
| HYD200 | ||||||
| LHS Product Model QW6-462R38 | ||||||
 | R38 | 462 | φ38 | 219 | 54 | 9*8 |
| Supporting models | ||||||
| HYD200/HYD300 | ||||||
