DTH (Down-The-Hole)Drilling Tools

DTH Bits

Transferring impact and rotation by connecting DTH hammers with splines, DTH bits dive into blast holes together with DTH hammers for breaking rocks. The DTH bits are divided into high air pressure and middle-low air pressure DTH bits, which are mainly used in surface mining, underground mining, bolting, quarrying, construction, etc.



High Air Pressure DTH Bits
Diameterφ90-φ 203mm
ShankDHD340A DHD350R DHD350Q DHD360 QL60 RH500
Face DesignConvex Face, Concave Face, Flat Face
Button ShapeBSpherical, Ballistic



Middle-low Air Pressure DTH Bits
Diameterφ90-φ 203mm
SpecificationDhd3.5 cir90 br33 cir100 ba-47
Face DesignConvex Face, Concave Face, Flat Face
Button ShapeSpherical, Ballistic,Conical

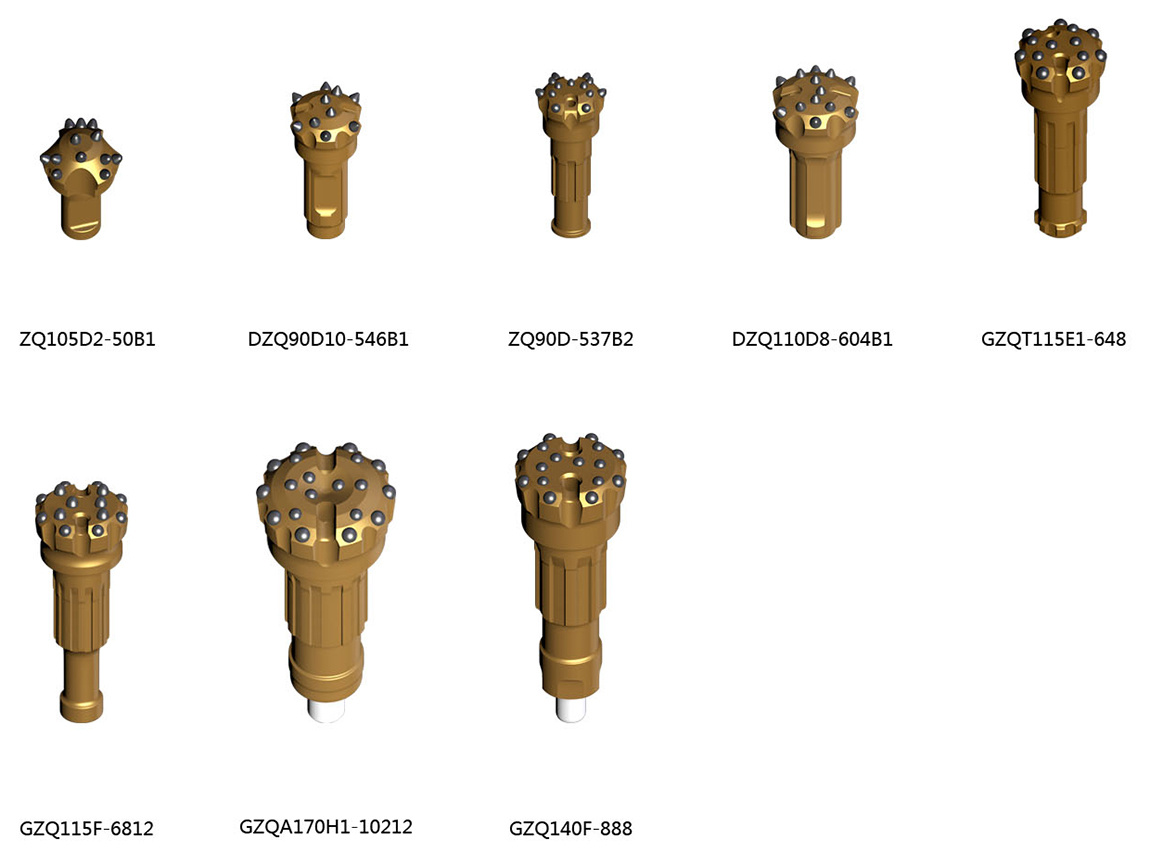

DTH Button Bits
LHS Part No.DiameterQty.×Size mm  Gauge ButtonQty.×Size mm Front ButtonAngleQty.×Size mm Flushing HoleSpline SizeSpline Width mmShank
ZQ105D2-50B11056 * φ14mm6 * φ14mm45°---BA-47
DZQ90D10-546B1906 * φ14mm2 * φ 14mm 2 * φ 12mm45°2 * φ16mm8 * φ47.5mm11CIR90
ZQ90D-537B2906 * φ12mm7 * φ10mm45°2 * φ13mm7 * φ53mm10.3BR33
DZQ110D8-604B11106 * φ14mm4 * φ 12mm 3 * φ 12mm45°2 * φ18mm4 * φ60mm20CR100
GZQT115E1-6481157 * φ16mm4 * φ 14mm 2 * φ 14mm40°2 * φ18mm8 * φ64mm12.2DHD340
GZQ115F-68121158 * φ14mm6 * φ14mm40°2 * φ16mm12 * φ67mm7RH500(4 inch)
GZQA170H1-102121707 * φ16mm6 * φ14mm40°2 * φ18mm8 * φ64mm9.5QL60
GZQ140F-8881408 * φ16mm8 * φ14mm40°2 * φ22mm8 * φ87.4mm13.76DHD350
